Value Driven Core Manufacturing
mitre core / XS600 & all models of stacking solutions
MODELS
XS600
The MTM XS600 is a high-performance 600mm step-lap lamination cutting line designed to maximize efficiency and precision in transformer core production. Combining proven reliability with modern automation, the XS600 enables fully sequential cutting and stacking, reducing material changeovers and optimizing machine utilization. Its compact design minimizes factory space requirements while eliminating the need for special foundations or looping pits, ensuring seamless integration into any facility. With advanced servo and pneumatic controls, the XS600 delivers high-speed production with exceptional accuracy, supporting various core configurations and step-lap designs.

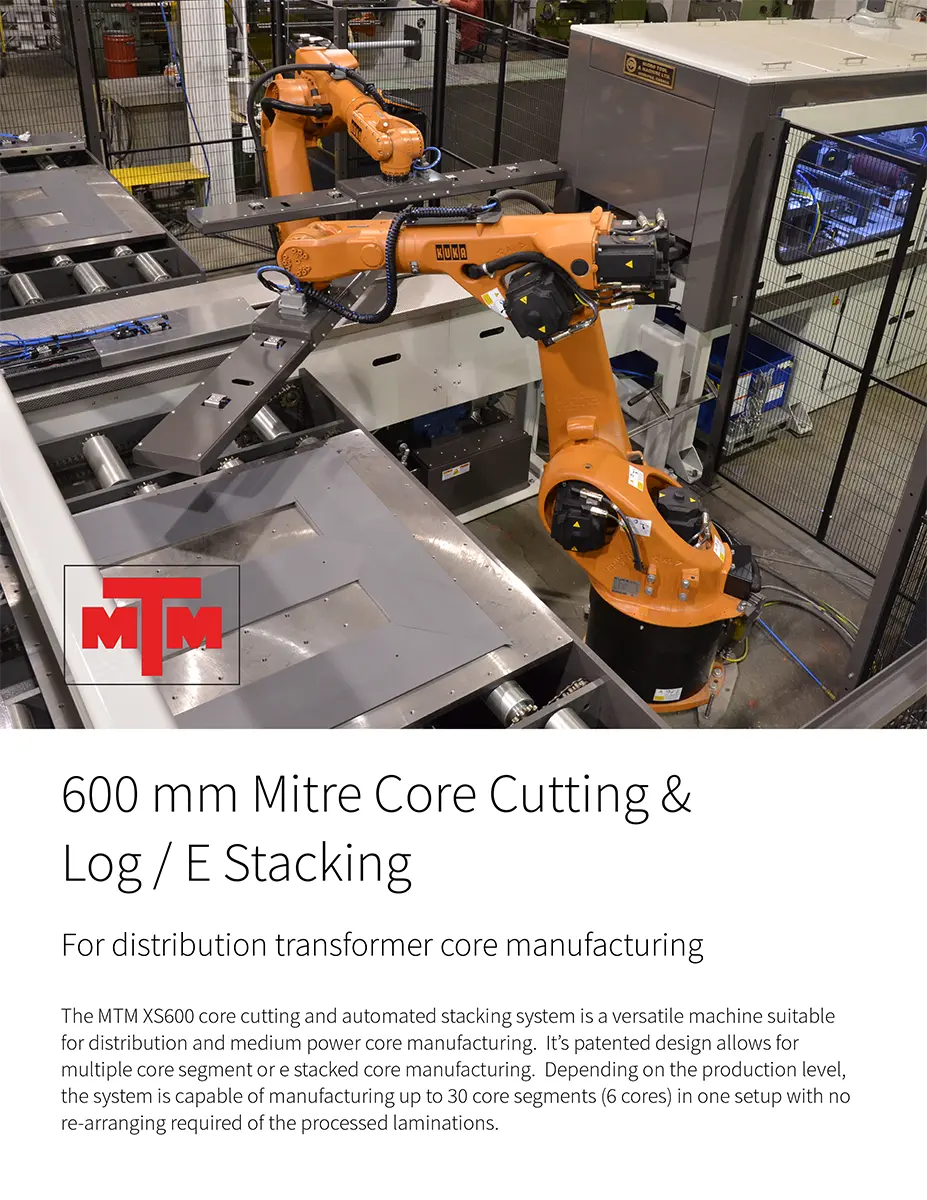

Click here to view the XS600 brochure
P10 Stacker
The P10 Stacker is an automated stacking system designed for precision and efficiency in transformer core manufacturing. Capable of stacking up to 10 core segments (2 complete cores) simultaneously, it ensures accurate step-lap formation without the need for locating pins. Using an advanced electromagnetic and pneumatic vacuum system, the P10 enables fully sequential cutting and stacking, reducing labor requirements and improving productivity. Its compact footprint and automated conveyor unloading system streamline material handling, making it an ideal solution for mid-volume core production.
P20 Stacker
The P20 Stacker is a high-capacity precision stacking solution engineered for large-scale transformer core production. With the ability to stack up to 30 core segments (6 complete cores) in a fully sequential mode, it allows continuous processing of multiple cores without interruptions. Featuring electromagnetic positioning and precision servo controls, the P20 achieves ±1mm stacking accuracy, significantly reducing operator involvement while increasing throughput. Its integrated motorized conveyors ensure smooth core unloading and transfer, optimizing workflow efficiency and minimizing handling time.
P20E Stacker
The P20E Stacker expands the capabilities of the P20 by introducing E-stacking functionality, making it ideal for advanced transformer core configurations. Utilizing dual multi-axis robotic arms, the P20E precisely positions laminations for E-core stacking, allowing simultaneous fabrication of up to four complete transformer cores. This system reduces cycle times, minimizes material waste, and enhances stacking precision, ensuring optimal core alignment without the need for pins. With its fully automated conveyor system and modular upgrade path, the P20E offers unmatched scalability and future-proofing for manufacturers seeking the highest level of automation in core production.
FEATURES
Fully programmable control system with touch screen HMI. Core programs can be made & downloaded from remote computer when networked.
Remote assistance troubleshooting via secure internet connection
Built-in functions and additional integration suites for monitoring and reporting process data to enhance manufacturing efficiency. Industry 4.0 ready.
